SEAFLO 12v x 350GPH SUBMERSIBLE MARINE BILGE PUMP yacht boat CE ROHS ISO stds

£11.00
Stock Status: In Stock
Information
SEAFLO non-automatic bilge pumps offer water evacuation activated by a panel or float switch. Our larger impeller design and more robust motor allow us to outperform our competitors. Our removable strainer base fits industry standard mounting conventions though, so you'll have no problem changing to us from them.

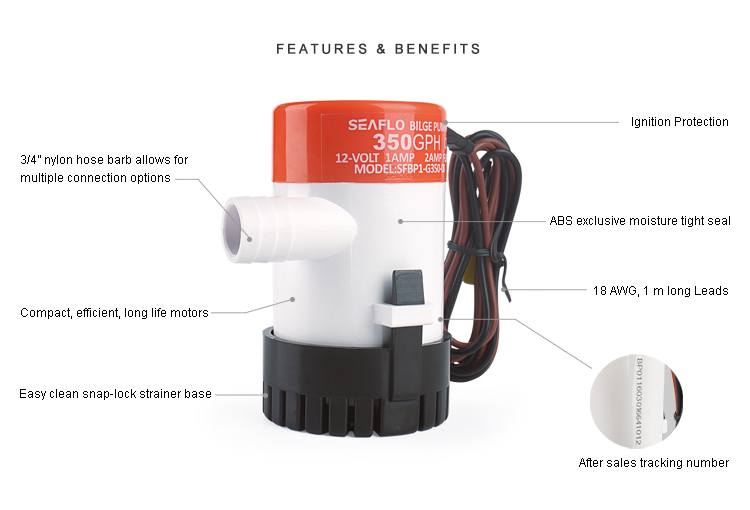

350GPH-1

MORE FEATURES
- Meets or exceeds RoHS, SGS and ISO standards
- Traditional operation by switch or float switch
- Entirely Submersible
- Run dry capable for normal workloads
- Quiet operation
- 110°F (43°C) temperature limit
- Stainless steel shaft

350GPH-2

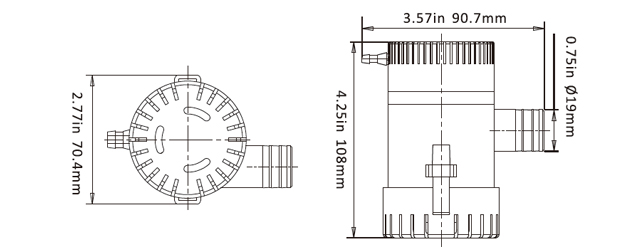

350GPH-3

STANDARD PUMP CONFIGURATIONS
ModelFlow RateVoltageMax DrawFuse AmpsHeadWire LeadOutlet DiaN.W. / G.W.
SFBP1-G350-01350 GPH12 V1.0 A2.0 A9' (3m)3' (1m)3/4"0.33/0.40 kg


PERFORMANCE

Voltage(V)Current(A)FlowHead(M)
GPH

LPH

12

0.4

301

1139

0

12

0.7

283

1071

0.2

12

0.7

264

999

0.4

12

0.7

230

871

0.6

12

0.7

215

814

0.8

12

0.5

122

462

1

12

0.7

178

674

1.2

12

0

0

0

2

VoltageV)Current(A)FlowHead(M)
GPH

LPH

13.6

1.2

345

1306

0

13.6

1.5

145

549

1

13.6

0

0

0

2

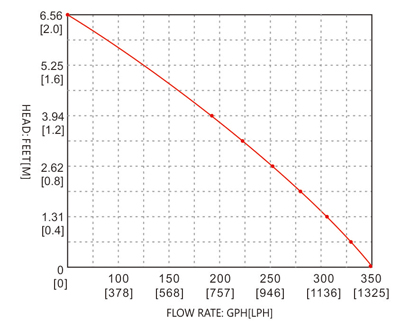

350GPH-4

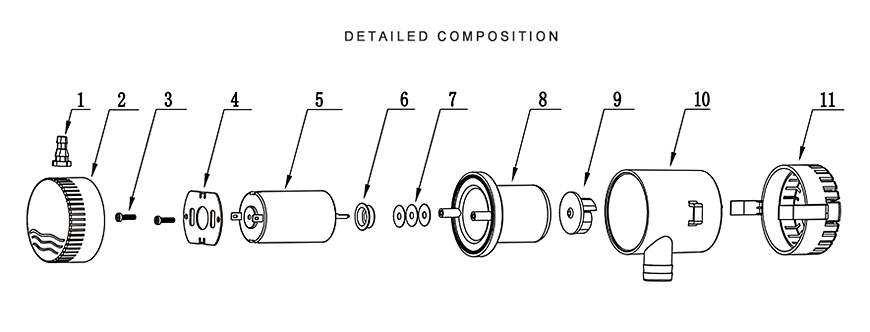

350GPH-5

KeyDescriptionQuantity
1

Wire Buckle

1
2

Pump Cover

1
3

Tapping Screw

2
4

Motor Bracket

1
5

Motor

1
6

Seal Base

1
KeyDescriptionQuantity
7

Seal

3
8

Motor Cover

1
9

Impeller

1
10

Pump Housing

1
11

Strainer

1

SHIPPING INFORMATION

Unit Pump Weight

0.45 lbs (0.34 kg)

Selling Unit Size (L x W x H)

3.94" x 3.54" x 4.65"
(10 x 9 x 11.8 cm)(Carton)
7.68" x 5.71"

(19.5 x 14.5 cm)(Clam)

Selling Unit Weight

0.82 lbs (0.37 kg)

DELIVERY

Delivery is sent through Royal Mail 2nd Class service and will take 2-3 working days

DELIVERY IS FOR UK ONLY

WE DO NOT DELIVER OUTSIDE THE UK


Items paid for before 12pm Monday - Friday will be dispatched the same day
Orders placed after this will be dispatched the following working day


Please see our other items added daily at unbeatable prices.

Seaflo
Specifications
  • Product Code:
    BP03
