SEAFLO 12 Amp AUTOMATIC BILGE PUMP MARINE FLOAT SWITCH (SFBS-12-04A) boat yacht
SEAFLO 12 Amp AUTOMATIC BILGE PUMP MARINE FLOAT SWITCH (SFBS-12-04A) boat yacht
SEAFLO 12 Amp AUTOMATIC BILGE PUMP MARINE FLOAT SWITCH (SFBS-12-04A) boat yacht
SEAFLO 12 Amp AUTOMATIC BILGE PUMP MARINE FLOAT SWITCH (SFBS-12-04A) boat yacht
SEAFLO 12 Amp AUTOMATIC BILGE PUMP MARINE FLOAT SWITCH (SFBS-12-04A) boat yacht

SEAFLO 12 Amp AUTOMATIC BILGE PUMP MARINE FLOAT SWITCH (SFBS-12-04A) boat yacht

£14.49
Stock Status: In Stock
Information

04 Series SEAFLO Bilge Pump Float Switch

Bilge Pump Float Switch

SEAFLO 03 series float switch max amps draws up to 12A.And it use ultrasonic welding, forming a seal, reliable and secure, not leaking.You can chouse withou/without filter housing. SEAFLO float switches are designed for use with fresh water and salt water only.

SFBS-12-04-A-DESCRIPTION-1

FEATURES & BENEFITS


- Amp draws up to 25A

- Shells made of high quality ABS material, the internal metal contacts to ensure reliable start / stop.
- Heavy duty flow switch is designed for the toughest applications; Environmentally responsible.
- with Filter housing to prevent from debris for the B.
- Turn on when water level higher than 45-55mm(1.77"-1.97").
- Turn off when water level lower than 20-25mm(0.79"-0.98").


SFBS-12-04-A-DESCRIPTION-2

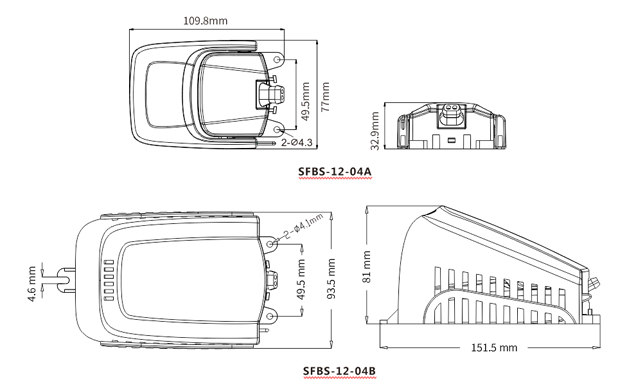

SFBS-12-04-A-DESCRIPTION-3

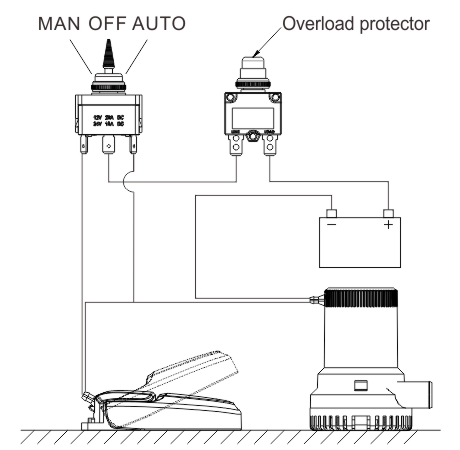

SFBS-12-04-A-DESCRIPTION-4

STANDARD PUMP CONFIGURATIONS

Model
Max Amps 12VoltsFilter HousingWire LeadWire Gauge SizeN.W.
SFBS-12-04A
12 A
NO
1 M
16 AWG
105 g

SFBS-12-04-A-DESCRIPTION-5
Key
Description
Quantity
1

25A

1
2

Float plate

1
3

Main casing plate

1
4

screw-1

1
5

gasket

1
6

Shrapnel switch

1
7

screw-2

1

Key
Description
Quantity
8

fixed part of spindle

1
9

Oil seal

1
10

25A axis of rotation

1
11

Main casing

1
12Seal for wire1
13

Wire

1


SHIPPING INFORMATION

Unit Pump Weight

0.44 lbs (0.2 kg)



DELIVERY

Delivery is sent through Royal Mail 2nd Class service and will take 2-3 working days

DELIVERY IS FOR UK ONLY

WE DO NOT DELIVER OUTSIDE THE UK


Items paid for before 12pm Monday - Friday will be dispatched the same day
Orders placed after this will be dispatched the following working day


Please see our other items added daily at unbeatable prices.

Seaflo
Specifications
  • Product Code:
    BPAFS04A
  • Weight:
    0.2kg
